The concept has been honed over the past 20 years or so, with many of these models quickly becoming considered benchmarks in the Prancing Horse’s line up, such as the 488 Pista and 812 Competizione. Over the same two decades, Ferrari has also developed the XX Programme to offer a select group of expert client drivers extreme cars that are not homologated for the road, but that can be driven at the very limit on the track. All of the models produced by the programme have proved a huge success, with the most recent addition being the FXX-K EVO.

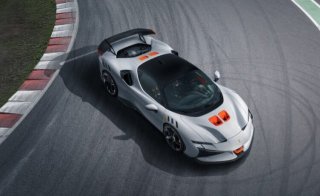

Drawing on its experience in both of these spheres, Ferrari decided to create a road-legal car which embodies the maximum expression of the two programmes’ engineering concepts. The SF90 XX Stradale is based on the supercar in the range, the SF90 Stradale, but raises its already impressively exhilarating track and on-the-limit driving experience to new heights. Performance is boosted thanks to its impressive 1,030 cv (30 more than the SF90 Stradale), specific software logics and the use of radical new aerodynamics solutions, including a fixed rear spoiler – the first to appear on a road-going Ferrari since the days of the F50 – which delivers an unparalleled 530 kg of downforce at 250 km/h.
The same concept provided the inspiration for the SF90 XX Spider, which combines the ultimate on-track adrenaline rush with the heady pleasure of en plein air driving, where the iconic sound of the Ferrari V8 gives such a vital contribution. The SF90 XX Spider benefits from same sophisticated aero solutions as the SF90 XX Stradale, as well as specifically developed cockpit air flows that guarantee superb occupant comfort with the top down. It is equipped with Ferrari’s acclaimed Retractable Hard Top (RHT), which comprises aluminium panels and not only deploys and retracts in a mere 14 seconds, but can also be activated at speeds of up to 45 km/h.
The SF90 XX Stradale has also inherited the SF9O Stradale and SF90 Spider’s signature PHEV layout, in which the V8 internal combustion engine is integrated with three electric motors, two independent on the front axle, and one located between the engine and gearbox at the rear. This configuration allows the car to unleash a maximum of 1030 cv (+30 cv more than the SF90 Stradale), setting a whole new performance benchmark.
INTERNAL COMBUSTION ENGINE
Thanks to its 797 cv, the mid-rear-mounted V8 turbo raises the performance limit bar still further for this particular architecture. The SF90 Stradale’s power unit was used as the starting point for the F154FB engine which powers the SF90 XX Stradale, but is now significantly more extreme. Efficiency was increased by polishing the inlet and exhaust ducts and the compression ratio was increased with the adoption of new pistons and specific machining of the combustion chamber. The removal of the secondary air system also slashed 3.5 kg off the engine’s weight compared to the previous application.
The SF90 XX Stradale’s soundtrack was redesigned to become the ultimate encapsulation of the car’s racing soul. To produce an even fuller, richer sound and celebrate the harmonics right across the V8’s rev range, the hot tube system was optimised. This transmits the combustion pulsations into the cabin, highlighting the higher frequencies to reveal the ultimate evolution of the Ferrari V8.
The use of innovative materials improved the acoustic clarity of the system: the result is a wonderfully rich explosion of iconic Ferrari V8 sound. The tube from the intake plenum has been redesigned and repositioned closer to the cabin’s bulkhead so that occupants are treated to even edgier, more raucous harmonics as the engine takes in greater quantities of air to deliver the desired torque. The resonator is now nearer the engine to create a richer harmony and increase intensity.
Like the SF90 Stradale, the SF90 XX Stradale has three electric motors, one located between the ICE and the gearbox and two on the front axle. In this instance, they deliver a maximum of 233 cv or 171 kW, thanks to the patented extra boost vehicle dynamics logic, an absolute first on a Prancing Horse road car. The SF90 XX Stradale’s high performance lithium-ion battery powers the three motors, guaranteeing a 25km range in full-electric mode. When the ICE is off, the front motors give the car a maximum speed of 135 km/h.
The control logic optimally manages the power flows focussing on either efficiency or performance as required. The driver can use the eManettino selector on the steering wheel to choose from four different power management modes. In eDrive mode, the internal combustion engine is turned off and traction is entrusted entirely to the front axle; in Hybrid mode, it favours battery energy depletion and manages transitions autonomously, maximising the full-electric range; in Performance mode, the internal combustion engine is kept running as the priority is on maintaining consistent performance, rather than on achieving the peak power; and in Qualifying, the system unleashes its maximum power output, thanks to a control logic that prioritises performance, using the brand-new extra boost function.
The SF90 XX Stradale and the SF90 XX Spider retain the 8-speed dual-clutch gearbox that made its first appearance in the Ferrari range on the SF90 Stradale. However, the gear-shift logic has changed significantly: the car uses the patented logic introduced on the Ferrari Daytona SP3 to reach more engaging dynamic acceleration profiles. Furthermore, the new logic improves the gear-shift sound by introducing an exhaust note similar to the overrun on lift-off noise typical of high-performance driving at medium/high revs.
To that end, the Ferrari engineers developed a specific engine calibration that works in synergy with the gearbox control logic: the SF90 Stradale’s actuation sequence was redesigned and the combustion chamber pressure cycle was optimised to maximise the intensity of the gear-shift sound, at exactly the point of lift-off to allow the gearbox to engage.
The SF90 XX Stradale delivers the most efficient aerodynamic performance of any road-going car in Ferrari’s history, making it comparable only to that of the LaFerrari supercar. It delivers double the maximum downforce of the SF90 Stradale, improving grip and yielding a palpably faster lap time at Fiorano. The product of Maranello’s inestimable racing experience, this result was reached by redesigning the cooling flow management for the thermal and electric components as well the engine compartment to cope with the higher maximum power available.
From an aerodynamics perspective, the signature element is most definitely the rear fixed wing which was developed from experience with the XX Programme cars. This is an element with enormous aero potential that proved a natural fit for this particular application, thanks to close collaboration with the Ferrari Styling Centre. Its shape was dictated by the need to efficiently hone the way in which the pressure field created by the wing interacts with the complex pressure and backpressure systems that develop around the shut-off Gurney.
The car also has a specific front splitter, which is larger than the SF90 Stradale’s, and is the result of meticulous work in the wind tunnel. It generates a highly energised tube of air flow under the car and this is then exploited by the redesigned underbody. A larger, wider front diffuser contributes to the increase in downforce of over 45 kg at 250 km/h, by working in synergy with vortex generators that themselves have been redesigned. The downforce generated by the underbody is stabilised and multiplied by specifically shaped bodywork surfaces.
The rear diffuser was further developed to guarantee it makes a pivotal contribution by generating highly efficient downforce, thanks to carefully designing the trailing edge around the expansion volume, which helps keep the car’s wake compact.
The focus with the SF90 XX Stradale’s development was to produce the most high-performance Ferrari road car ever that also delivered maximum fun behind the wheel, whilst fully retaining all of the functionalities of the SF90 Stradale’s hybrid powertrain. Usability of performance was especially important, particularly in terms of the electric mode’s ability to deliver surprisingly high performance driving both in typically urban settings and in out-of-town trips – in fact, the top speed in eDrive mode is 135 km/h.
The transition from electric mode to hybrid mode is extremely smooth thanks to the seamless coordination between the electric front axle, the 8-speed DCT gearbox, the rear-mounted electric motor and the V8 engine. This in turn guarantees progressive, continuous acceleration and makes all the powertrain’s power available as rapidly as possible.
The Torque Vectoring and Energy Recovery under braking and lift-off functions are available in all configurations, and the Ferrari Dynamic Enhancer (2.0) makes its debut. It is also active in all dynamic Manettino positions and all grip conditions. The various systems are all managed by the electronic Side Slip Control (eSSC) 1.0.
In addition to this, also debuting on SF90 XX Stradale is the extra boost control logic which guarantees additional power in short bursts. The job of this software, which is only active in the Qualifying mode of the eManettino, is to produce an extra boost of power at the critical moment when the car is exiting a bend, something which alone improves lap time by 0.25s at Fiorano. The logic controls the power delivery, managing peak performance with battery charge, also monitoring the status of the components with the aim of optimising electric power delivery.
The SF90 XX Stradale is the most extreme version of the SF90 Stradale; its design criteria are thus those of a track car, calibrated to ensure it can be homologated for road use. That said, the SF90 XX Stradale is not just a special version: it is the first XX model to go through the factory gates, transferring the very pinnacle of Prancing Horse track technology, aerodynamic efficiency and power, to the road.
Designed by the Ferrari Styling Centre headed by Flavio Manzoni, the SF90 XX Stradale incorporates the engineering principles that underpinned the SF90 Stradale and pushes them to new extremes. Thanks to the close synergic relationship between the Styling Centre and the Technical Department, significant modifications were carried out, predominantly with the aim of increasing the downforce of the original car.
There is no doubt that one of the most distinctive characteristics of the SF90 XX Stradale’s design is its rear wing. The tail volume, which has been specifically redesigned with aero in mind, is now sleeker, giving it the long tail silhouette typical of racing cars. The air intakes for the intercoolers are now larger too, channelling the air towards the radiators more efficiently.
One of the layers is the fixed rear wing, a solution not seen on a street legal Ferrari since the 1995 F50. The second is the body-coloured profile that wraps around a light-bar, an element that is a complete departure from the twin-taillight concept of the SF90 Stradale. The third layer, already seen on the SF90, is the blown spoiler combined with an active aero concept known as a shut-off Gurney.
The guiding principle of the SF90 XX Stradale’s interior design was highlighting the cockpit’s racing vocation through solutions that would provide significant weight-savings. The main areas involved were the door panels, tunnel and mats, which are now simpler in terms of their shape and the mainly technical fabrics used, while carbon-fibre was used for functional areas. The upper part of the dashboard is trimmed in Alcantara®, while the lower part is trimmed in technical fabric. Both are inspired by the racing world.
SF90 XX SPIDER
The SF90 XX Spider allowed the Ferrari Styling Centre to use the modifications made to the rear of the car to create an instantly recognisable architecture in which the flying buttress, a much-loved part of Ferrari tradition, seamlessly melds with the arrow theme of the front. The resulting visual effect extends the body forwards and lending it a completely different connotation to the SF90 XX Stradale.
The car’s centre of gravity thus appears to be lower too, particularly from the side. This is not just because of the roof, which has a wraparound windscreen that seamlessly melds with the side windows, but also because the flying buttresses are lower than on the SF90 XX Stradale. Although the roll-bars protrude from the rest of the bodywork when the roof is lowered, the fact that they are carbon-fibre means they don’t sully the broad, squat look created by the flying buttresses. This in turn enhances the visual lowering of the car’s volume.
When the roof is up, the roll-bars seamlessly connect to and become one with the roof structure. Like the roll-bars, the top is carbon-fibre and thanks to the renowned Ferrari Retractable Hard Top (RHT) mechanism, can be opened while the car is moving in a mere 14 seconds at a speed of up to 45 km/h, allowing occupants to enjoy the car to the utmost in all kinds of weather.
7 YEARS MAINTENANCE
Ferrari’s unparalleled quality standards and strong focus on client service underpin the extended seven-year maintenance programme offered with both the SF90 XX Stradale and the SF90 XX Spider. Available across the entire range, all regular maintenance for the first seven years of the car’s life is covered. This scheduled maintenance programme for Ferraris is an exclusive service that allows clients the certainty that their car is being kept at peak performance and safety over the years. This very special service is also available to owners of pre-owned Ferraris.
The Genuine Maintenance programme further extends the wide range of after-sales services offered by Ferrari to meet the needs of clients wishing to preserve the performance and excellence that are the signatures of all cars built in Maranello.
